Buick Regal: Air Conditioning Evaporator Tube Replacement (LTG)
Removal Procedure
1. Recover the refrigerant.
2.
.png)
Air Cleaner Assembly(1) - Remove.
3. Front Compartment Air Deflector - Remove.
4. Front Wheelhouse Liner-Right Side - Remove.
5. Front Bumper Fascia - Remove.
6.
.png)
Engine Mount-Right Side(3) - Remove.
7.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Condenser - Remove.
8.
.png)
Air Conditioning Evaporator Tube(1) - Remove.
9. Remove and DISCARD the sealing washer.(2).
10.
.png)
Air Conditioning Evaporator Tube(1)@Front End Upper Tie Bar - Remove.
11.
.png)

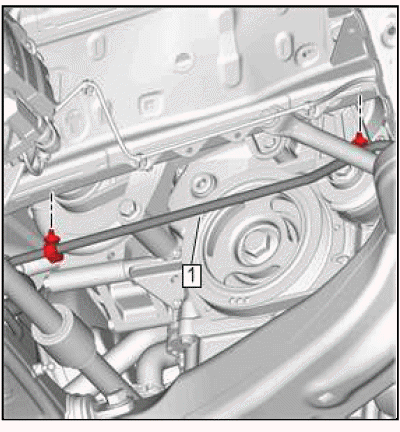

Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Remove.
12.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Evaporator Tube - Remove.
13.
.png)

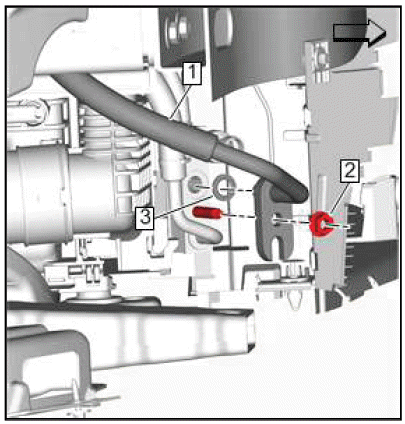

Air Conditioning Evaporator Tube Nut(2) - Remove.
14. Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Remove.
15.
.png)
Air Conditioning Evaporator Tube Nut(3) - Remove.
16. Air Conditioning Evaporator Tube(2) - Remove.
17. Remove and DISCARD the sealing washer.(1)[2x].
Installation Procedure
1.
.png)

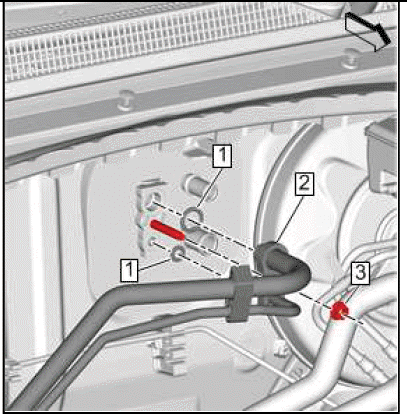

Install NEW sealing washers.(1)[2x].
2. Air Conditioning Evaporator Tube(2) - Install.
CAUTION: Refer to Fastener Caution.
3. Air Conditioning Evaporator Tube Nut(3) - Install and tighten19 N.m (14 lb ft).
4.
.png)
Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Install.
5. Air Conditioning Evaporator Tube Nut(2) - Install and tighten 9 N.m (80 lb in).
6.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Evaporator Tube - Install.
7.
.png)
Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Install.
8.
.png)
Air Conditioning Evaporator Tube(1)@Front End Upper Tie Bar - Install.
9.
.png)
Install NEW sealing washers.(2).
10. Air Conditioning Evaporator Tube(1) - Install.
11.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Condenser - Install.
12.
.png)
Engine Mount-Right Side(3) - Install.
13.
.png)
Air Cleaner Assembly(1) - Install.
14. Recharge the refrigerant.
15. Inspect for refrigerant leaks.
16. Front Bumper Fascia - Install.
17. Front Wheelhouse Liner-Right Side - Install.
18. Front Compartment Air Deflector - Install.
AIR CONDITIONING EVAPORATOR TUBE REPLACEMENT (LGX)
Removal Procedure
1. Recover the refrigerant.
2. Front Compartment Air Deflector - Remove.
3. Front Wheelhouse Liner-Right Side - Remove.
4. Front Bumper Fascia - Remove.
5.
.png)
Engine Mount-Right Side(2) - Remove.
6.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Condenser - Remove.
7.
.png)
Air Conditioning Evaporator Tube(1) - Remove.
8. Remove and DISCARD the sealing washer.(2).
9.
.png)
Air Conditioning Evaporator Tube(1)@Front End Upper Tie Bar - Remove.
10.
.png)
Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Remove.
11.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Evaporator Tube - Remove.
12.
.png)
Air Conditioning Evaporator Tube Nut(2) - Remove.
13. Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Remove.
14.
.png)
Air Conditioning Evaporator Tube Nut(3) - Remove.
15. Air Conditioning Evaporator Tube(2) - Remove.
16. Remove and DISCARD the sealing washer.(1)[2x]
Installation Procedure
1.
.png)
Install NEW sealing washers.(1)[2x].
2. Air Conditioning Evaporator Tube(2) - Install.
CAUTION: Refer to Fastener Caution.
3. Air Conditioning Evaporator Tube Nut(3) - Install and tighten 19 N.m (14 lb ft).
4.
.png)
Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Install.
5. Air Conditioning Evaporator Tube Nut(2) - Install and tighten 9 N.m (80 lb in).
6.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Evaporator Tube - Install.
7.
.png)
Air Conditioning Evaporator Tube(1)@Front Compartment Inner Side Rail - Install.
8.
.png)
Air Conditioning Evaporator Tube(1)@Front End Upper Tie Bar - Install.
9.
.png)
Install NEW sealing washers.(2).
10. Air Conditioning Evaporator Tube(1) - Install.
11.
.png)
Air Conditioning Compressor and Condenser Hose(1)@Air Conditioning Condenser - Install.
12.
.png)
Engine Mount-Right Side(2) - Install.
13. Recharge the refrigerant.
14. Inspect for refrigerant leaks.
15. Front Bumper Fascia - Install.
16. Front Wheelhouse Liner-Right Side - Install.
17. Front Compartment Air Deflector - Install.
