Buick Regal: Specifications
FASTENER SPECIFICATIONS
Single Use Non-Threaded Fasteners/Components
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
Application
Power Transfer Unit Alignment Sleeve
Power Transfer Unit Cover Housing Seal
Power Transfer Unit Face Seal
Power Transfer Unit Half Shaft SealO-Ring
Power Transfer Unit Cover to Intermediate Drive Shaft Seal
Power Transfer Unit Gear Shaft Rear Seal - Case
Power Transfer Unit Gear Shaft Rear Seal - Cover
Power Transfer Unit Input Shaft Seal- Front
Power Transfer Unit Half Shaft Retainer Clip
Power Transfer Unit Propeller Shaft Retainer
Power Transfer Unit Propeller Shaft Seal - O-Ring

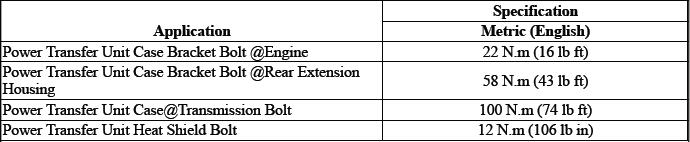

Single Use Threaded Fastener/Component Tightening Specifications
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
.png)

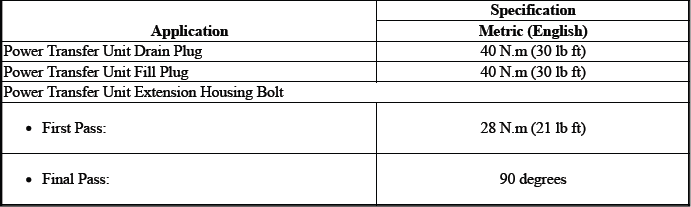

Reusable Threaded Fastener Tightening Specifications
NOTE: All fasteners listed in this table can be reused after removal.
.png)
.png)
APPROXIMATE FLUID CAPACITIES
.png)

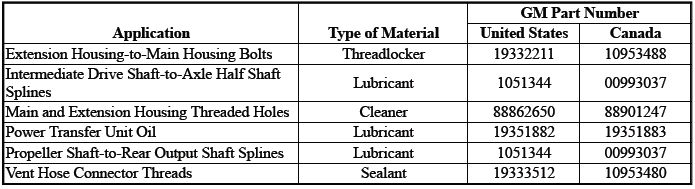

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS
.png)
