Buick Regal: DTC B3806

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B3806 00

High Beam and Headlamp Flash Select Circuit Malfunction

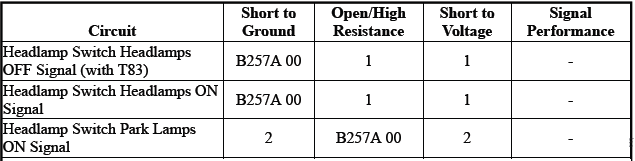

Diagnostic Fault Information

Lighting

Lighting

1. Headlamps Malfunction
2. Park, License, and/or Tail Lamps Malfunction

Circuit/System Description

When the turn signal/multifunction switch is momentarily placed in the flash to pass position, ground is applied to the body control module (BCM) through the flash to pass signal circuit. The BCM responds to the flash to pass request by applying ground to the high beam relay control circuit which energizes the high beam relay. With the high beam relay energized, the switch contacts close allowing battery voltage to flow through the high beam fuses to the high beam control circuits illuminating the high beam headlamps. The high beam headlamps will only illuminate for as long at the flash to pass switch is activated.

Conditions for Running the DTC

Battery voltage must be between 9-16 V.

Conditions for Setting the DTC

The BCM detects a short to ground in the turn signal/multifunction switch flash to pass signal circuit.

Actions Taken When the DTC Sets

The high beam headlamps and the high beam indicator on the instrument cluster are always ON.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Headlights/Daytime Running Lights (DRL) Wiring Schematics

Connector End View Reference

COMPONENT CONNECTOR END VIEWS - INDEX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information.

Circuit/System Testing

1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, open and close drivers door, disconnect the harness connector at the S78 Turn Signal/Multifunction Switch. It may take up to 2 min for all vehicle systems to power down.

2. Test for less than 15 Ω between the ground circuit terminal 3 and ground.

  • If 15 Ω or greater
  1. Ignition OFF.
  2. Test for less than 2 Ω in the ground circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, repair the open/high resistance in the ground connection.
  • Go to next step: If less than 15 Ω

3. Ignition ON.

4. Verify the scan tool Headlamps Flash Switch parameter is Inactive.

  • If not Inactive
  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit terminal 6 and ground.
    • If less than infinite resistance, repair the short to ground on the circuit.
    • If infinite resistance, replace the K9 Body Control Module.
  • Go to next step: If Inactive

5. Install a 3 A fused jumper wire between the signal circuit terminal 6 and ground.

6. Verify the scan tool Headlamps Flash Switch parameter is Active.

  • If not Active
  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the signal circuit terminal 6 and ground.
    • If 1 V or greater, repair the short to voltage on the circuit.
    • Go to next step: If less than 1 V
  3. Test for less than 2 Ω in the signal circuit end to end.
    • If 2 Ω or greater, repair the open/high resistance in the circuit.
    • If less than 2 Ω, replace the K9 Body Control Module.
  • Go to next step: If Active

7. Test or replace the S78 Turn Signal/Multifunction Switch.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Turn Signal Switch Replacement
  • Control Module References for BCM replacement, programming, and setup
